2-T-FN Termination

Item# 2-T-FN
$83.00

2-T-FN

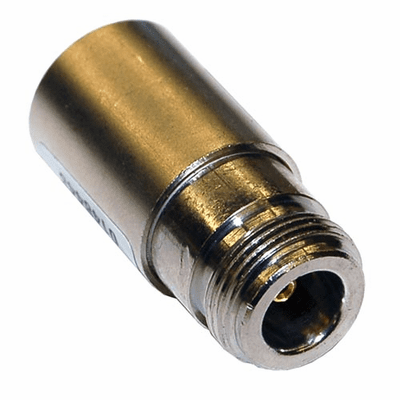

2 Watt RF Coaxial Termination


Bird's RF terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.


Specifications

  • Power Rating:
    • 2W (max) @ 40°C
    • 2.4W (max) @ 25°C
  • Frequency Range & VSWR:
    • DC to 1 GHz @ 1.10:1 (max)
    • 1 to 4 GHz @ 1.25:1 (max)
  • Impedance: 50 Ohms, nominal
  • Connector: N-Type Female Connector
  • Cooling: Convection-Cooled
