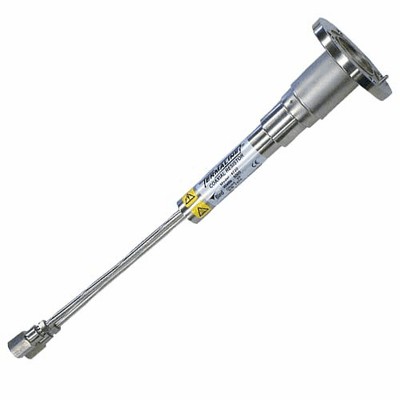

8720, 5kW Econoload Water-Cooled RF Termination

8720 Water-Cooled RF Load is designed as a compact, low VSWR and non-radiating termination for high-power transmitter/transmission line systems. It generates almost no ambient heat, making installation space minimal and convenient, in any position.

The RF power is converted to heat in the hollow resistive film load resistor and directly absorbed by the water flowing through it.

Specifications
  • Power Rating: 5kW Continuous
  • VSWR:
    • DC - 500 MHz @ 1.10 (max)
    • 500 - 900 MHz @ 1.15 (max)
    • 900 - 2000 MHz @ 1.25 (max)
  • Impedance: 50 Ohms
  • Water Rate & Temp.:
    • 1 Gal.(min) | 4L (min) @ 5C
    • 4 Gal.(min) | 15L (min) @ 80C
  • Water Connection: 1/4 Tube to 1/4 F.P.T Coupling
  • Connector: 1-5/8 EIA Flanged
  • Coolant: Water-Cooled
