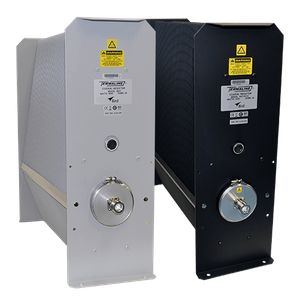

8920 Series TERMALINE® 5 kW, Oil-Cooled Termination
The 8920 Series terminations are self-contained high-power 50 ohm coaxial transmission line terminations requiring no outside power source or additional equipment. The units provide accurate, dependable, and practically nonreflective termination for testing and adjusting transmitters under nonradiating conditions. The loads consist essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 1 GHz.
The 8920 Series terminations are self-contained high-power 50 ohm coaxial transmission line terminations requiring no outside power source or additional equipment. The units provide accurate, dependable, and practically nonreflective termination for testing and adjusting transmitters under nonradiating conditions. The loads consist essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 1 GHz.
- Rugged load for high power transmitter applications testing up to 1 GHz
- Oil-assisted (vented) convection cooling for safe, continuous operation up to 5000W full rated power
- Simple but rugged design minimizes maintenance requirements
