5000-NG, Digital RF Power Meter Displays and Test Kits
5000-NG, RF Power Edge
RF Power Testing - Redefined!

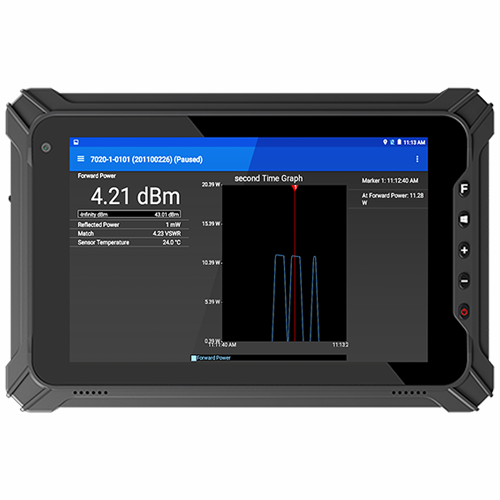

The Bird 5000-NG, RF Power Meter Display sets a new standard in RF power measurement—combining advanced technology with unmatched portability. This cutting-edge, handheld RF power meter features a high-resolution touchscreen display, enabling technicians and engineers to capture, view, and analyze RF power data effortlessly in the field or laboratory.
Compatible with Bird’s wide range of USB RF power sensors, the 5000-NG supports a broad frequency range and delivers accurate measurements of True Average Power, VSWR, Return Loss, and more—making it ideal for RF testing, diagnostics, and research applications.

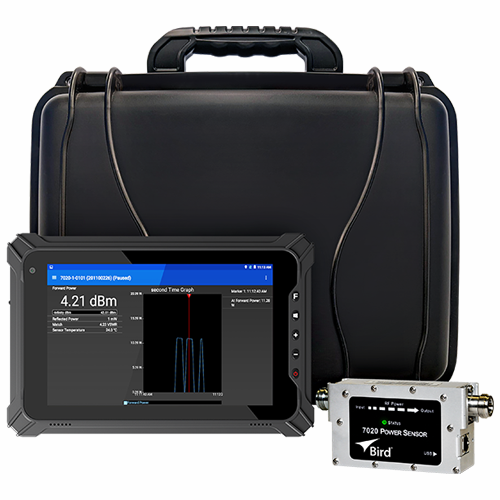

Bird's 5000B100 Series, RF Digital Power Meter Test Kits offer a complete solution for precision RF power measurements. Designed for field technicians and R&D professionals, these kits pair high-accuracy wideband power sensors with the intuitive 5000-NG display—ensuring reliable, real-time data wherever your work takes you.
PRODUCT FEATURES- Wide Frequency Coverage: Measure frequencies from 25 MHz to 4 GHz with top-tier accuracy
- User-Friendly Display: Navigate your data effortlessly with a rugged, responsive touchscreen
- Portable Design: Lightweight and durable, perfect for both fieldwork and lab settings
| Model | Sensor | Frequency Range | Power Range |
|---|---|---|---|
| 5000B100-14 | 5014 | 2 MHz to 1.0 GHz | 125 mW to 1 kW |
| 5000B100-17 | 5017D | 25 MHz to 1.0 GHz | 500 mW to 500 W |
| 5000B100-18 | 5018D | 150 MHz to 4.0 GHz | 100 mW to 25 W |
| 5000B100-19 | 5019D | 25 MHz to 1.0 GHz | 100 mW to 100 W |
| 5000B100-20 | 7020-1-010101 | 350 MHz to 4.0 GHz | 0.15 W to 150 W |
