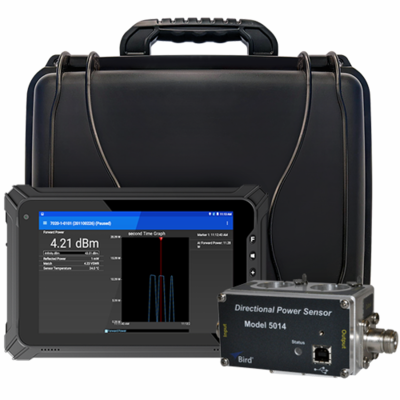

5000C100-14, (2 MHz to 1.0 GHz, 125 mW to 1 kW) RF Digital Power Meter Test Kit
5000C100-14, Digital RF Meter Test Kit
5000-XR, RF Power Meter with 5014, RF Directional Power Sensor
Choose an accessory below to include Software Options, Extended Warranty and/or CALDATA with your order. These options must be added at the time of purchase.
Simplified RF Testing
Bird’s new premier solution in RF power measurement technology: the 5000C100-14 RF Power Measurement Kit with Display. Engineered for precision, ease of use, and unparalleled versatility, this kit combines our state-of-the-art Wideband Power Sensors with an intuitive 5000-XR high-resolution Digital Power Meter Display. Designed to meet the rigorous demands of field technicians and R&D engineers alike, our kit delivers accurate, reliable measurements across a broad frequency spectrum.
Whether you're assessing RF power in complex industrial environments or conducting sophisticated laboratory research, our kit offers a seamless user experience with real-time data visualization, ensuring you have the insights you need at your fingertips.
Product Features
- Our kit includes a top-tier 5014, Directional Power Sensor, 2 MHz to 2.7 GHz, 125 mW to 1 kW, Full scale. This sensor ensures high accuracy and reliability for both forward and reflected power measurements, making it perfect for a wide array of RF applications from telecommunications to broadcasting and beyond.
- High-Resolution Touchscreen Display: Equipped with a rugged, userfriendly touchscreen display, the kit offers vivid, real-time visualization of measurement data. This feature enhances user interaction, allowing for quick adjustments and easy access to a variety of measurement metrics such as VSWR, Return Loss, and Peak Power, all at your fingertips. Features automatic sensor detection simplifying RF power testing.
Key Measurements
- True Average Power (Forward and Reflected)
- VSWR, Return Loss, rho, Match Efficiency
- Peak Power, Peak to Average Ratio, Crest Factor, PEP
- Crest Factor, Burst and Burst Average Power
- CDF, CCDF, Confidence %
- Pulse Parameters
- Sensor Temperature
Specifications
- Frequency Range: 2 MHz to 2.7 GHz (Element Dependent), elements not included
- Power Range: 125 mW to 1 kW, Full scale
- Sensor Detection: Automatic USB Sensors
- Operating System: Android 14
- Upgradeability: Firmware field-upgradable via USB port
- Data Transfer: USB drive, PC, WiFi, or Bluetooth
- Storage: 128 GB
- Display: Full-Color 8” 1280 x 800-pixel display w/backlight
- Battery: Removable, Rechargeable, Internal 3.7V/8500mAh Battery
- External I/O Ports:
- USB Type-C: Charging, Commucation with sensors
- USB 2.0: Commucation with sensors
- Power Import Port: USB Type-C (Supports PE + 2.0 Fast Charging)
- Standard Accessories: 6' SeaLatch USB Cable, 6' USB Cable, Premium Carry Case, Charger, US Charger AC/DC USB-C Power Supply (18W max.), International Charger (5 V, 2.5 A ), Stylus and Instruction Manual
