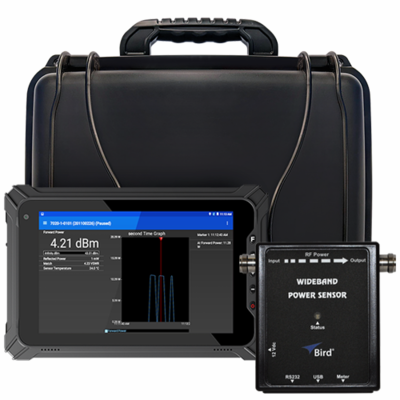

5000B100-17, 25 MHz to 1.0 GHz, 500 mW to 500 W

RF Digital Power Meter Test Kit with 5017D RF Power Sensor

Simplified RF Testing

Bird’s new premier solution in RF power measurement technology: the 5000B100-17 RF Power Measurement Kit with Display. Engineered for precision, ease of use, and unparalleled versatility, this kit combines our state-of-the-art Wideband Power Sensors with an intuitive 5000-NG high-resolution Digital Power Meter Display. Designed to meet the rigorous demands of field technicians and R&D engineers alike, our kit delivers accurate, reliable measurements across a broad frequency spectrum.

Whether you're assessing RF power in complex industrial environments or conducting sophisticated laboratory research, our kit offers a seamless user experience with real-time data visualization, ensuring you have the insights you need at your fingertips.

Product Features

• Our kit includes a top-tier 5017D, Wideband Power Sensor, 25 MHz to 1.0 GHz, 500 mW to 500 W, 1300 W Peak. This sensor ensures high accuracy and reliability for both forward and reflected power measurements, making it perfect for a wide array of RF applications—from telecommunications to broadcasting and beyond.
• High-Resolution Touchscreen Display: Equipped with a rugged, userfriendly touchscreen display, the kit offers vivid, real-time visualization of measurement data. This feature enhances user interaction, allowing for quick adjustments and easy access to a variety of measurement metrics such as VSWR, Return Loss, and Peak Power, all at your fingertips. Features automatic sensor detection simplifying RF power testing.

Key Measurements

• True Average Power (Forward and Reflected)
• VSWR, Return Loss, rho, Match Efficiency
• Peak Power, Peak to Average Ratio, Crest Factor, PEP
• Crest Factor, Burst and Burst Average Power
• CDF, CCDF, Confidence %
• IEEE 194 Pulse Parameters
• Sensor Temperature

Specifications

• Frequency Range: 25 MHz to 1 GHz
• Power Range: 500 mW to 500 W
• Sensor Detection: Automatic USB Sensors
  WiFi 802.11 Network scan for BPME & CPM
• Operating System: Android 5.1
• Upgradeability: Firmware field-upgradable via USB port
• Data Transfer: USB drive, PC, WiFi, or Bluetooth
• Storage: 16 GB
• Display: Full-Color 8” 1280 x 800-pixel display w/backlight
• Battery: Rechargeable lithium battery
• Connectors: Micro USB PC interface & charging and Standard USB power sensor interface
• Standard Accessories: 6' SeaLatch USB Cable, 6' USB Cable, Premium Carry Case, Charger, US Charger (5 V, 2.5 A), International Charger (5 V, 2.5 A P), Stylus and Instruction Manual
