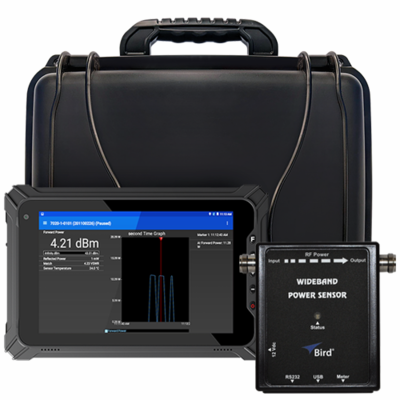

5000B100-18, 150 MHz to 4.0 GHz, 100mW to 25W

RF Digital Power Meter Test Kit with 5018D RF Power Sensor

Simplified RF Testing

Bird’s new premier solution in RF power measurement technology: the 5000B100-18 RF Power Measurement Kit with Display. Engineered for precision, ease of use, and unparalleled versatility, this kit combines our state-of-the-art Wideband Power Sensors with an intuitive 5000-NG high-resolution Digital Power Meter Display. Designed to meet the rigorous demands of field technicians and R&D engineers alike, our kit delivers accurate, reliable measurements across a broad frequency spectrum.

Whether you're assessing RF power in complex industrial environments or conducting sophisticated laboratory research, our kit offers a seamless user experience with real-time data visualization, ensuring you have the insights you need at your fingertips.

Product Features

• Our kit includes a top-tier 5018D, Wideband Power Sensor, 150 MHz to 4.0 GHz, 100 mW to 25 W, 60 W Peak. This sensor ensures high accuracy and reliability for both forward and reflected power measurements, making it perfect for a wide array of RF applications—from telecommunications to broadcasting and beyond.
• High-Resolution Touchscreen Display: Equipped with a rugged, userfriendly touchscreen display, the kit offers vivid, real-time visualization of measurement data. This feature enhances user interaction, allowing for quick adjustments and easy access to a variety of measurement metrics such as VSWR, Return Loss, and Peak Power, all at your fingertips. Features automatic sensor detection simplifying RF power testing.

Key Measurements

• True Average Power (Forward and Reflected)
• VSWR, Return Loss, rho, Match Efficiency
• Peak Power, Peak to Average Ratio, Crest Factor, PEP
• Crest Factor, Burst and Burst Average Power
• CDF, CCDF, Confidence %
• IEEE 194 Pulse Parameters
• Sensor Temperature

Specifications

• Frequency Range: 150 MHz to 4 GHz
• Power Range: 100mW to 25W
• Sensor Detection: Automatic USB Sensors
  WiFi 802.11 Network scan for BPME & CPM
• Operating System: Android 5.1
• Upgradeability: Firmware field-upgradable via USB port
• Data Transfer: USB drive, PC, WiFi, or Bluetooth
• Storage: 16 GB
• Display: Full-Color 8” 1280 x 800-pixel display w/backlight
• Battery: Rechargeable lithium battery
• Connectors: Micro USB PC interface & charging and Standard USB power sensor interface
• Standard Accessories: 6' SeaLatch USB Cable, 6' USB Cable, Premium Carry Case, Charger, US Charger (5 V, 2.5 A), International Charger (5 V, 2.5 A P), Stylus and Instruction Manual
